SKU HOPBIRMB

Product Information:

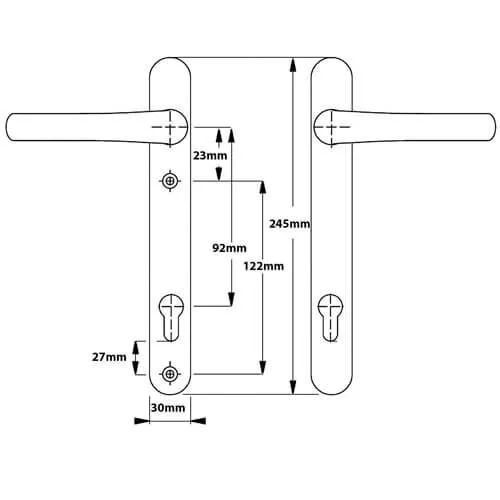

These Hoppe handles from the Birmingham range have sprung 92pz internal & external levers. With a backplate size of 245mm x 30mm they are available in various finishes.

The distance between the fixing screws is 122mm with the bottom screw positioned 27mm below the euro profile cut-out.

They are supplied as a pair complete with spring cassettes, an 8mm square spindle & 2 colour co-ordinated bolt through M5 screws to suit door thickness 70mm.

Specifications:

• Sprung

• Type (3811N) backplate

• Length: 245mm

• Width: 30mm

• Centres (PZ): 92mm

• Screw centres: 122mm

• Base of euro to bottom screw: 27mm

• Top screw to spindle: 23mm

• Supplied with spindle & screws

• Supplied as a pair

• Non-handed
